Rolex Movements Explained: Every Caliber You Should Know

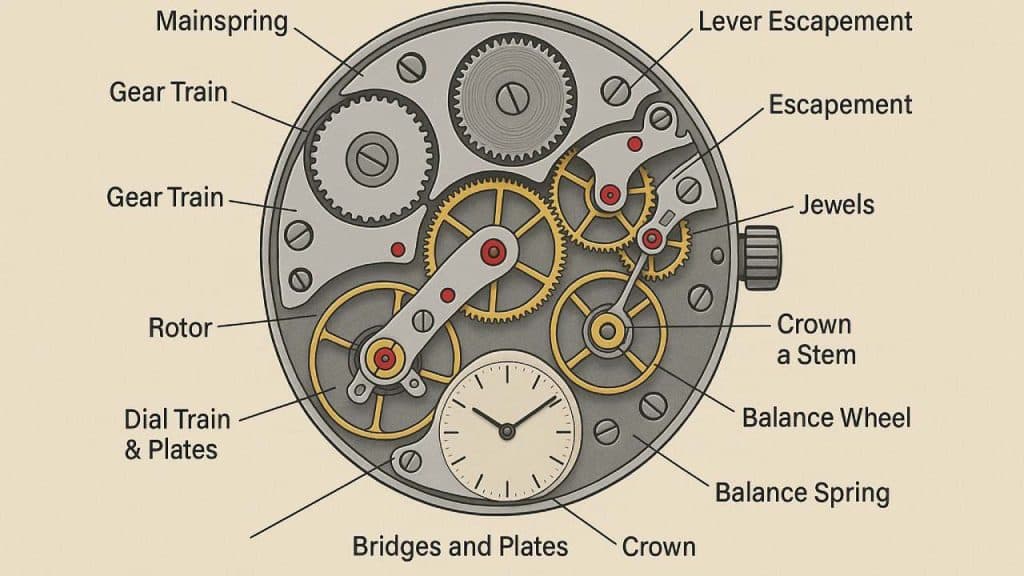

Rolex designs and manufactures every movement in-house at their facilities in Bienne, Switzerland. This has been the case since the early 2000s, when Rolex transitioned away from using movements based on third-party ebauches. Today, every caliber that goes into a Rolex watch is entirely Rolex-made, from the mainspring to the escapement to the balance wheel. Understanding these movements is essential to understanding what makes one Rolex different from another under the dial.

What Is a Caliber?

In watchmaking, "caliber" refers to the specific movement used inside a watch. Rolex uses a four-digit numbering system for its calibers (e.g., 3235, 4131, 7140). The caliber determines the functions available (time-only, date, GMT, chronograph), the power reserve, the accuracy specifications, and the size of the movement. Two Rolex watches can look identical from the outside but contain completely different calibers with different capabilities.

Caliber 3230: The Time-Only Workhorse

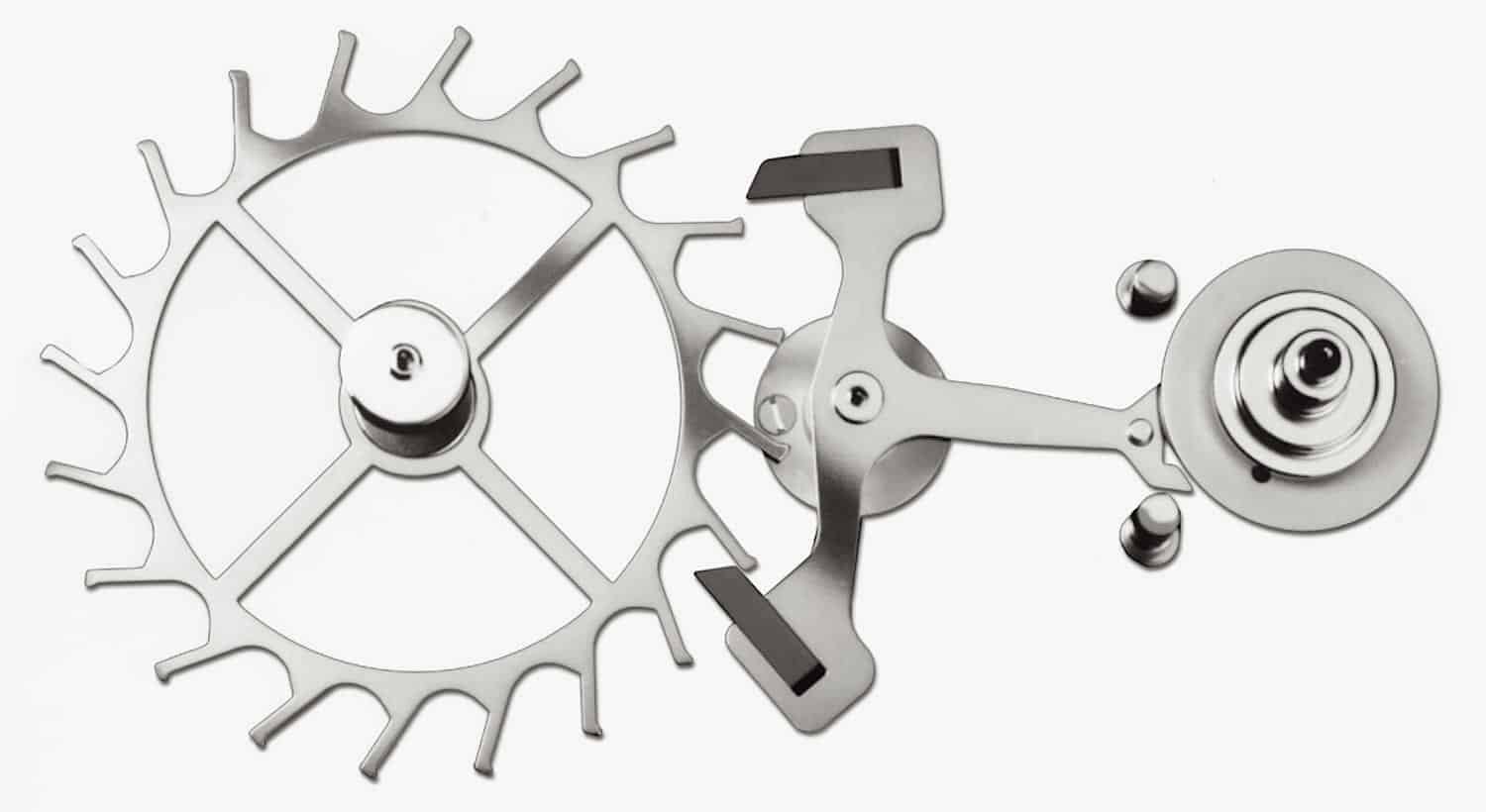

The Caliber 3230 powers Rolex's time-only models without a date function, including the Oyster Perpetual (36mm and 41mm), the no-date Submariner (ref. 124060), and the Explorer (ref. 124270). Introduced around 2020, it features Rolex's Chronergy escapement (a patented design that improves energy efficiency by 15 percent over previous escapements), a Parachrom hairspring (resistant to magnetic fields and temperature variations), and a 70-hour power reserve.

The 3230 replaced the Caliber 3130, which had served Rolex for decades. The key improvements are the longer power reserve (up from 48 hours), the Chronergy escapement, and overall refinements to the construction and finishing of the movement. For the average wearer, the practical benefit is simple: you can take the watch off Friday evening and put it back on Monday morning, and it will still be running.

Caliber 3235: Date Models

The Caliber 3235 is the date-equipped counterpart to the 3230. It powers the Submariner Date, Datejust (36mm and 41mm), Sea-Dweller, Explorer II, and several other models. It shares the same Chronergy escapement, Parachrom hairspring, and 70-hour power reserve as the 3230, with the addition of a date mechanism.

The 3235 replaced the legendary Caliber 3135, which was the backbone of the Rolex lineup for over 30 years. The 3135 was known for its reliability and accuracy, and the 3235 builds on that foundation with 14 patents covering improvements in precision, power reserve, shock resistance, and magnetic resistance. The Caliber 3235 is arguably the most important movement in the current Rolex catalog because it appears in so many popular models.

Caliber 3285: The GMT Movement

The GMT-Master II uses the Caliber 3285, which adds a independently adjustable 24-hour hand to the base 3235 architecture. This allows the wearer to track a second time zone by rotating the 24-hour bezel and reading the additional hand against it, while the standard hour hand can be set independently without stopping the seconds hand.

The independently adjustable hour hand is a critical feature for travelers. It means you can adjust the local time by jumping the hour hand in one-hour increments without affecting the running seconds or the 24-hour reference hand. Previous GMT calibers (like the 3186 and 3185) also had this feature, but the 3285 adds the 70-hour power reserve and Chronergy escapement of the current generation.

Caliber 3255: The Day-Date Movement

The Day-Date 40 uses the Caliber 3255, which was actually the first Rolex movement to debut the new generation of Chronergy escapement technology when it launched in 2015. It includes both a day display (the full name of the day, spelled out in one of 26 languages) and a date display, along with the 70-hour power reserve and Parachrom hairspring. The 3255 is also used in the 40mm Day-Date, while the 36mm Day-Date uses the Caliber 3255 as well.

Caliber 4131: The Daytona Chronograph

The Cosmograph Daytona uses the Caliber 4131, which replaced the long-running Caliber 4130 in 2023. The 4130 was itself a landmark movement when it debuted in 2000, as it was Rolex's first fully in-house chronograph caliber. The 4131 builds on its predecessor with the Chronergy escapement, improved chronograph mechanism, and a 72-hour power reserve.

The Daytona's chronograph uses a vertical clutch coupling system and column wheel, which are considered the gold standard for chronograph construction. The vertical clutch allows the chronograph seconds hand to start without any stutter or jump, while the column wheel provides smooth, precise actuation of the start, stop, and reset functions. The 4131 also features a patented Paraflex shock absorber for improved impact resistance.

Caliber 9001: The Sky-Dweller

The Sky-Dweller uses the Caliber 9001, one of the most complex movements Rolex currently produces. It features an annual calendar (which only needs to be adjusted once per year, at the end of February), a dual time zone display with off-center 24-hour disc, and interaction through the innovative Ring Command bezel. The fluted bezel rotates to select one of three setting positions: local time, reference time, or date. This eliminates the need for additional pushers or corrector buttons on the case.

Despite its complexity, the Caliber 9001 maintains the same Superlative Chronometer standards as simpler Rolex movements: plus or minus two seconds per day after casing. It has a 72-hour power reserve and features the Parachrom hairspring and Paraflex shock absorbers. The 9001 contains over 380 components, making it significantly more complex than the 3235's approximately 200 components.

Caliber 7140: The 1908

When Rolex introduced the 1908 collection (replacing the Cellini dress watch line), it debuted the Caliber 7140. This movement is notable for being the first Rolex caliber to use a tungsten micro-rotor rather than a full-size oscillating weight. The micro-rotor allows for a thinner overall movement profile, which gives the 1908 its slim, dressy case proportions. The 7140 features a 66-hour power reserve and the same Chronergy escapement used across the current Rolex lineup.

Why Movements Matter

For most Rolex buyers, the movement is invisible. You never see it unless the caseback is removed during service. But the caliber determines how long the watch runs without winding, how accurately it keeps time, what functions are available, and how long it will last between service intervals. Understanding Rolex calibers helps you compare models intelligently, evaluate the significance of new releases, and appreciate the engineering that separates Rolex from brands that buy their movements from third-party suppliers.

Every Rolex movement is chronometer certified by COSC (Controle Officiel Suisse des Chronometres) and then further tested by Rolex to meet their Superlative Chronometer standard. That means every Rolex, regardless of price, meets the same baseline of accuracy and reliability. The differences between calibers come down to complications, power reserve, and the specific engineering solutions Rolex applies to each function.
